Trusses

High Tensile Steel Frame Trusses

Mecano supply flat-pack or pre-assembled high tensile trusses in three configurations.

  • Standard: Used for flat ceilings in most house applications
  • Scissor Trusses: used for raked/cathedral ceilings for a contemporary open plan look
  • Gable End Trusses are purposely designed for fixing exterior cladding
Flat pack Steel Framing

Choose from 3 different Frame styles :

Standard Trusses

Steel Frame Truss
Used for standard flat ceilings in most house applications.

Scissor Trusses

Steel Frame Scissor Truss
Used for raked/cathedra ceilings for a contemporary open plan look.

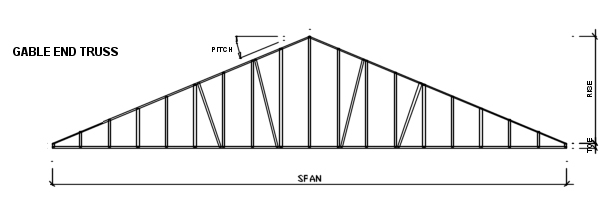

Gable End Trusses

Flatpack Steel Truss
Gable End Trusses designed to suit wall stud spacings.

All top, bottom chords and webs are pre-punched, notched, and dimpled to ensure that all webs fit perfectly into the top and bottom chord.

Optional Eave Overhang

Truss Overhang
Standard Eaves: 450mm or 600mm

All Trusses are available with optional overhang on either or both ends, allowing for easy attachment of fascia and soffit sheeting.

– W41 non cyclonic areas require trusses to be at a maximum 1200mm centres.

– W50 cyclonic areas require trusses to be at maximum 900 centres.
