Mecano Sheds and Kit Homes

Modular Storage Sheds

Flat-pack Storage Units

The Mecano Modular Storage Shed System was designed to drastically reduce construction time and overall cost of storage shed installations. Mecano’s innovative panel frame system has many advantages over a typical portal frame design including:

  • Reduced construction time
  • Reduction in unnecessary materials
  • Modular design for any configuration

By using a the panel frame system and mounting roof purlins flush with the frame, less material is needed to seal each module from its neighbours saving upfront cost of materials and saving time previously spent installing flashings during construction.

Storage Shed Units
Wall panel height can be adjusted for undulating land allowing for uniform height.
panel frame installation

Each module consists of 3 stud frame walls which are tek screwed together. A stud frame head beam is used in between the C-section jambs for easy roller door installation.

Walls panels can be delivered assembled or in a flat-pack

Panel Frame Storage
Stud Frame Storage shed

Roof purlins are mounted in a nesting channel so that they sit flush with the roofline to seal each module.

Storage Shed Construction

Half of the modules are lined with steel cladding.

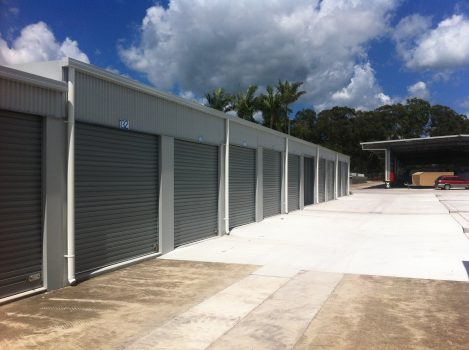

Storage Shed Installation

Modules are added until the required size is achieved. External cladding, flashings and roller doors are installed completing the installation.
